Standard product

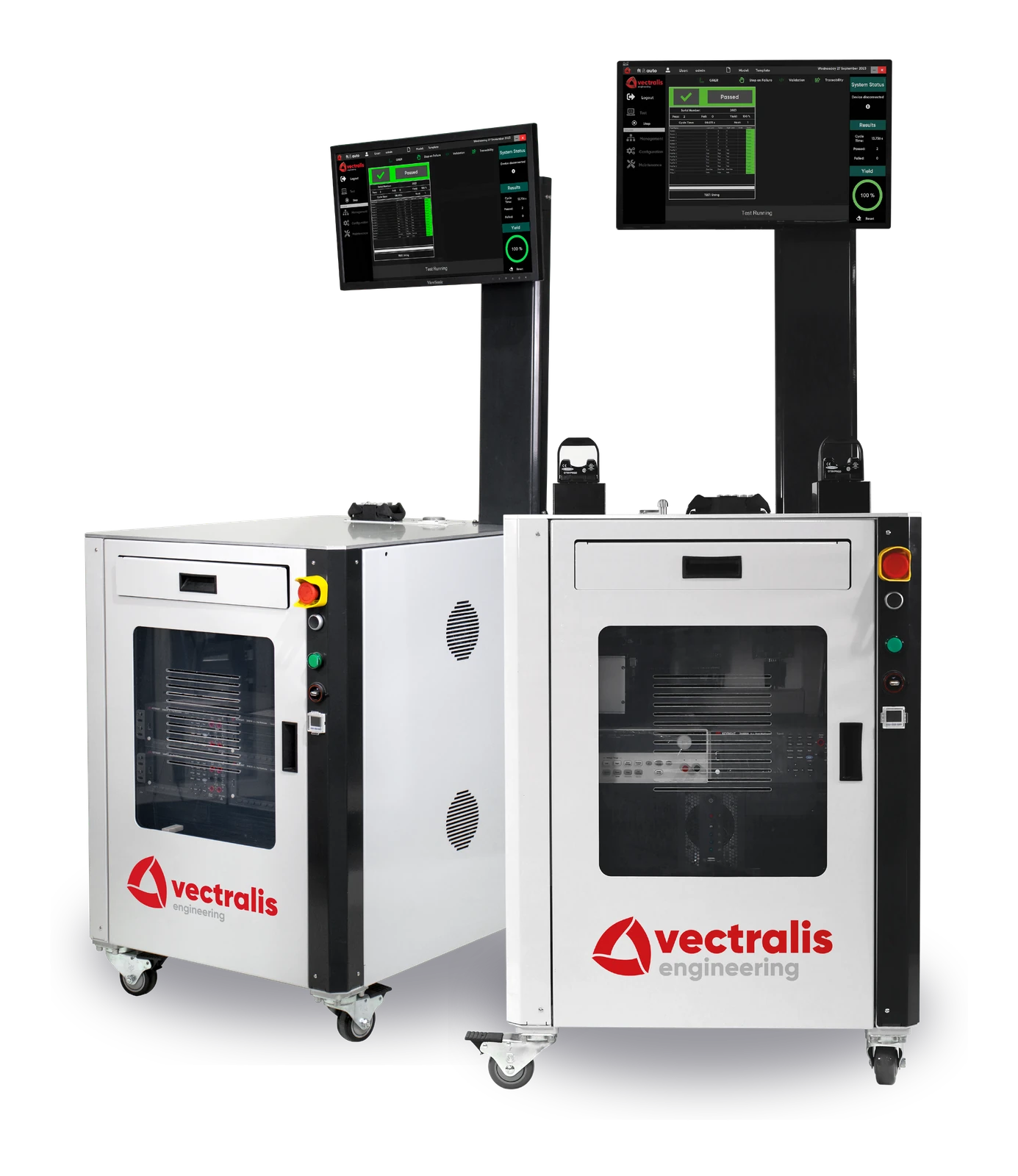

V|box.

A modular base that accelerates the development and execution of functional and communication tests, signal measurement, LED analysis, programming and much more.

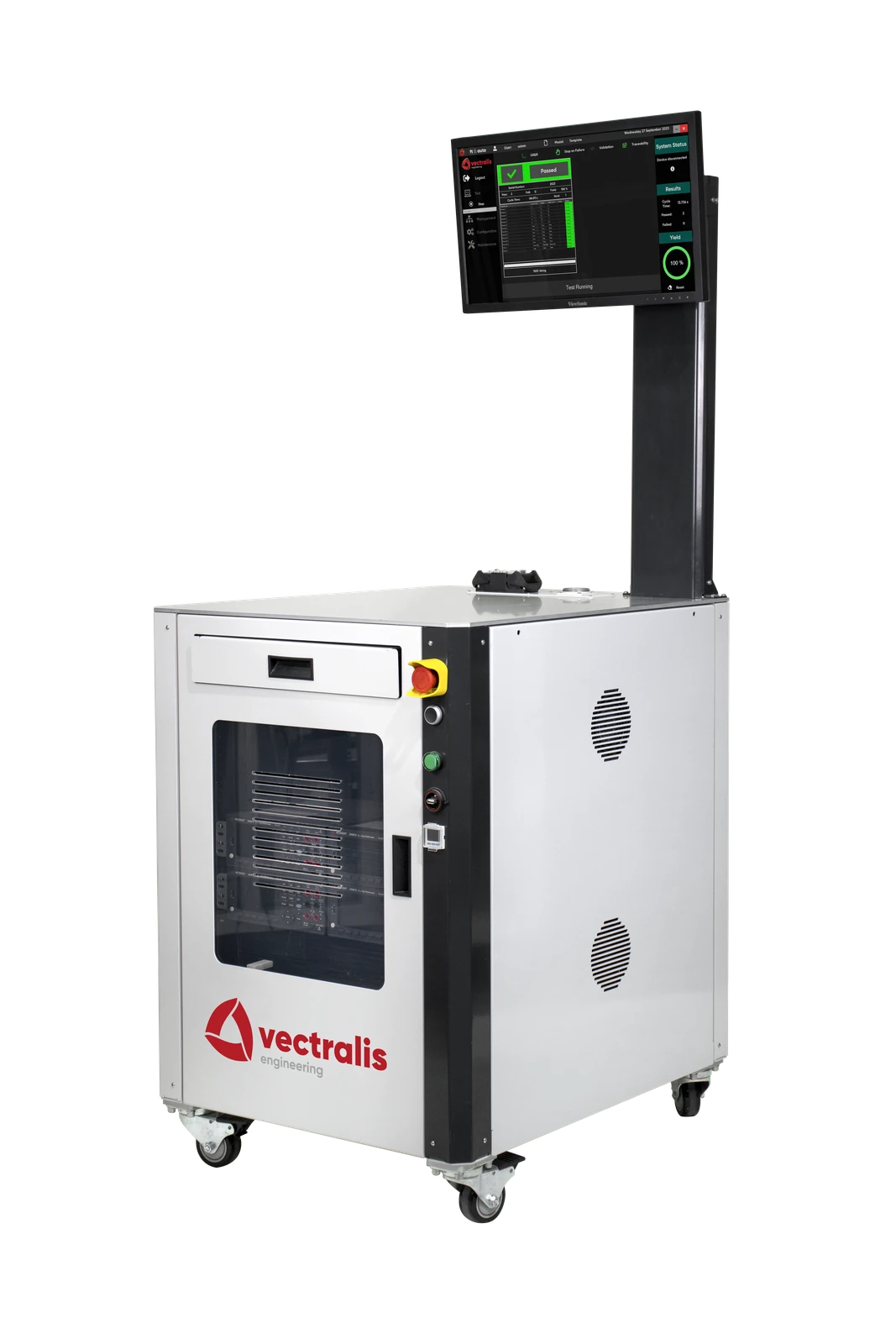

The platform

Built to shorten the road to production.

Working with Ingun fixtures we develop PCBA or small final-product tests, integrating and implementing in production in a very short time.

Characteristics

Fixture maximum width 660 mm
Harting, Ingun Pylon, VPC or other interface systems
800 (h) × 660 (w) × 800 (d) mm, 1680 mm (h) including monitor
13U of rack space for instrumentation, PC and UPS

V|box variations

One base, multiple ways to use it.

The same modular platform, adapted to what your product actually needs.

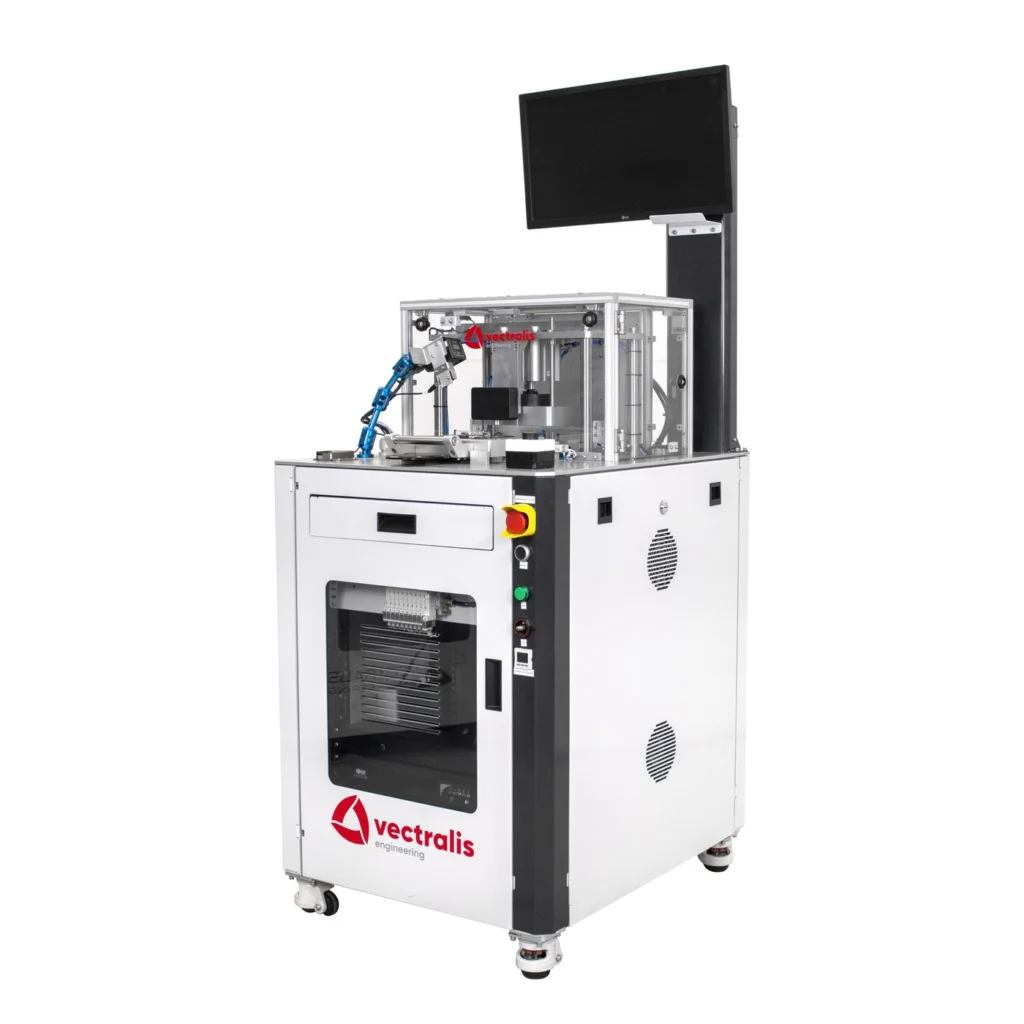

Leak Tester

Leak testing integrated into the V|box base, for sealed assemblies.

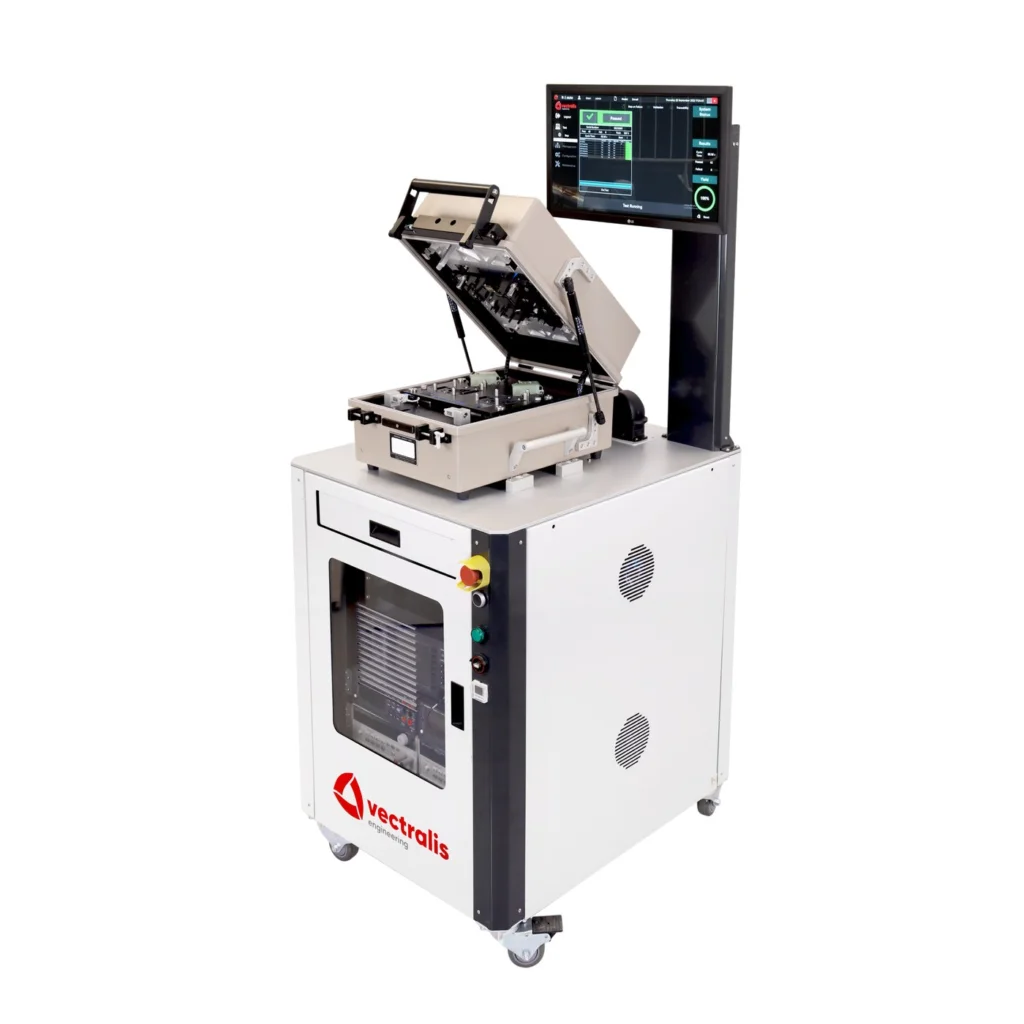

RF Fixture

Shielded RF environment for wireless and antenna verification.

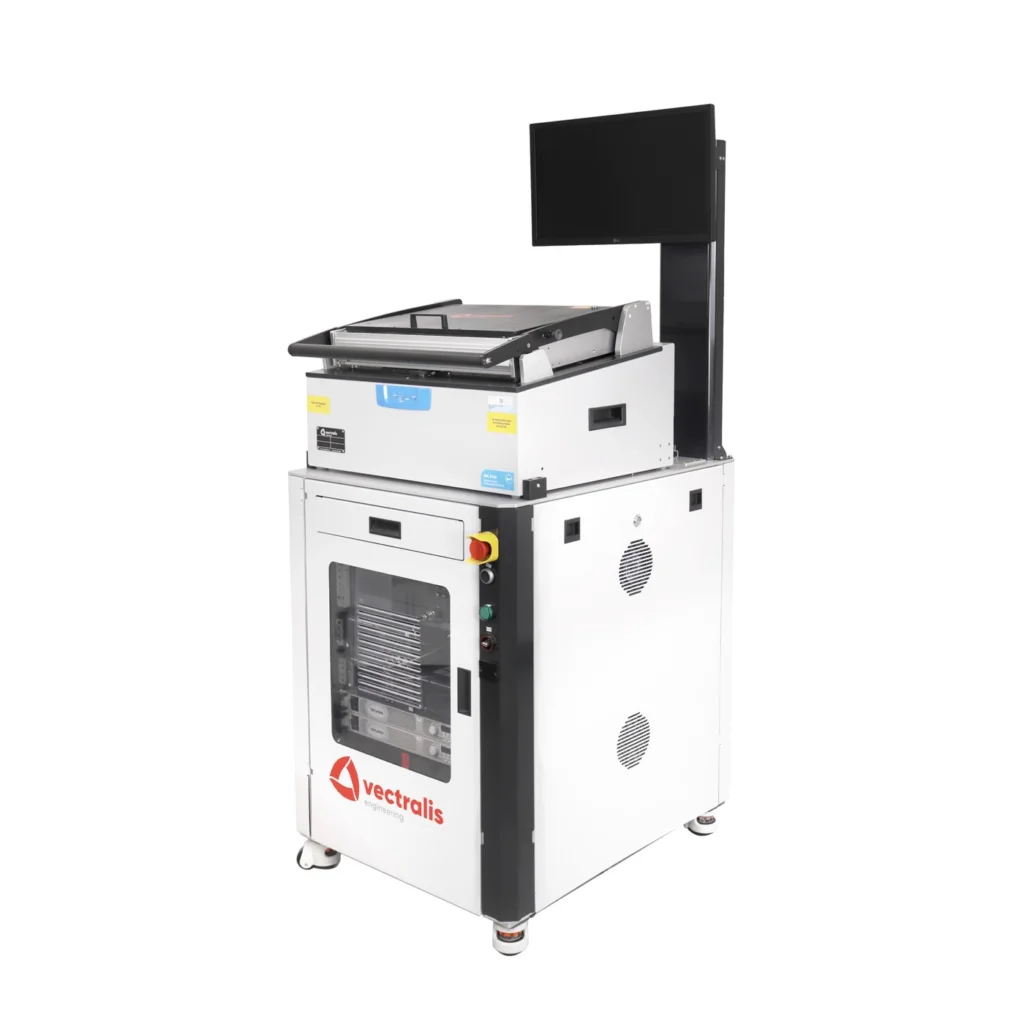

Ingun Fixture

Ingun interface for fast, repeatable PCBA contacting.

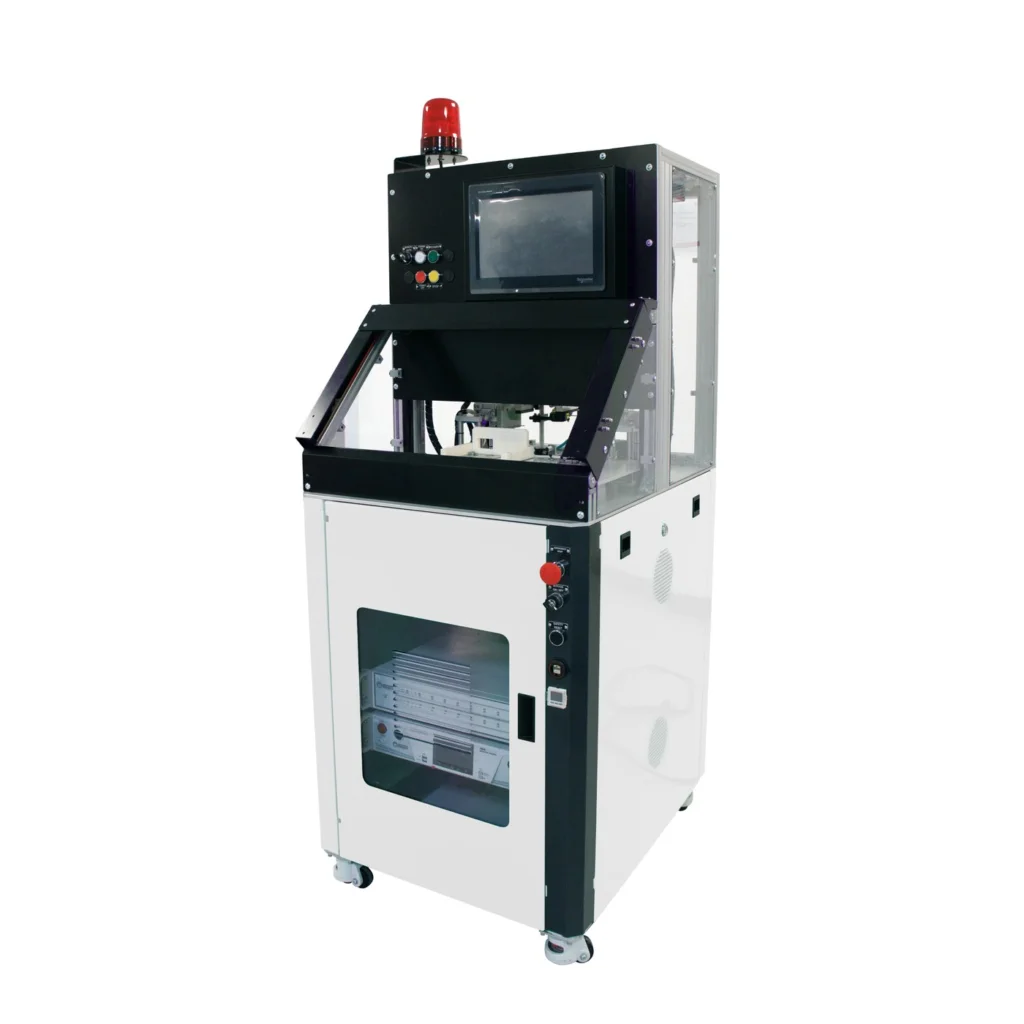

Custom Fixture

Purpose-built tooling when the product will not fit a standard interface.

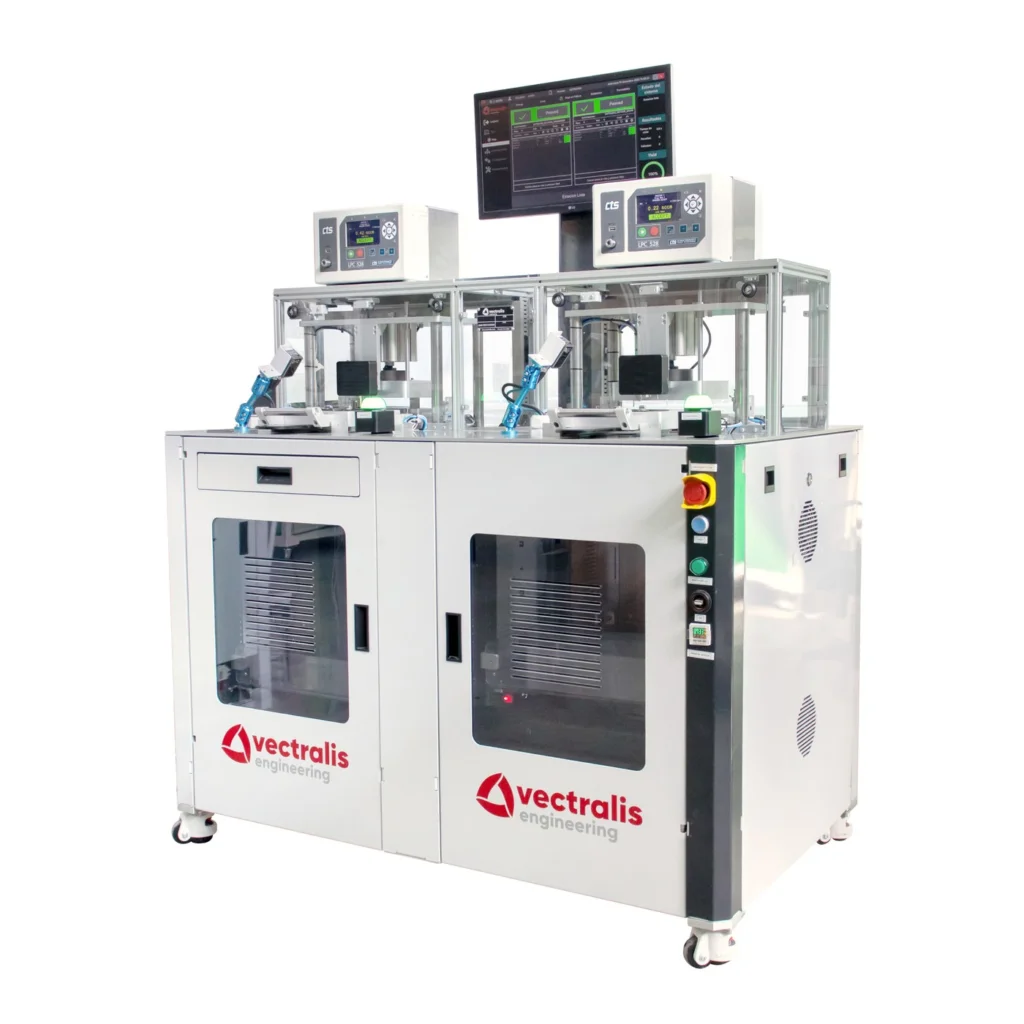

Double Vbox

Double rack configuration that enables parallel or independent testing.

Variant

Tall|box

Extended version of the V|box, offering the same testing capabilities with additional space for instrumentation, supporting up to 32 rack units.

Data sheets

Specifications at a glance.

Click a data sheet to enlarge it.

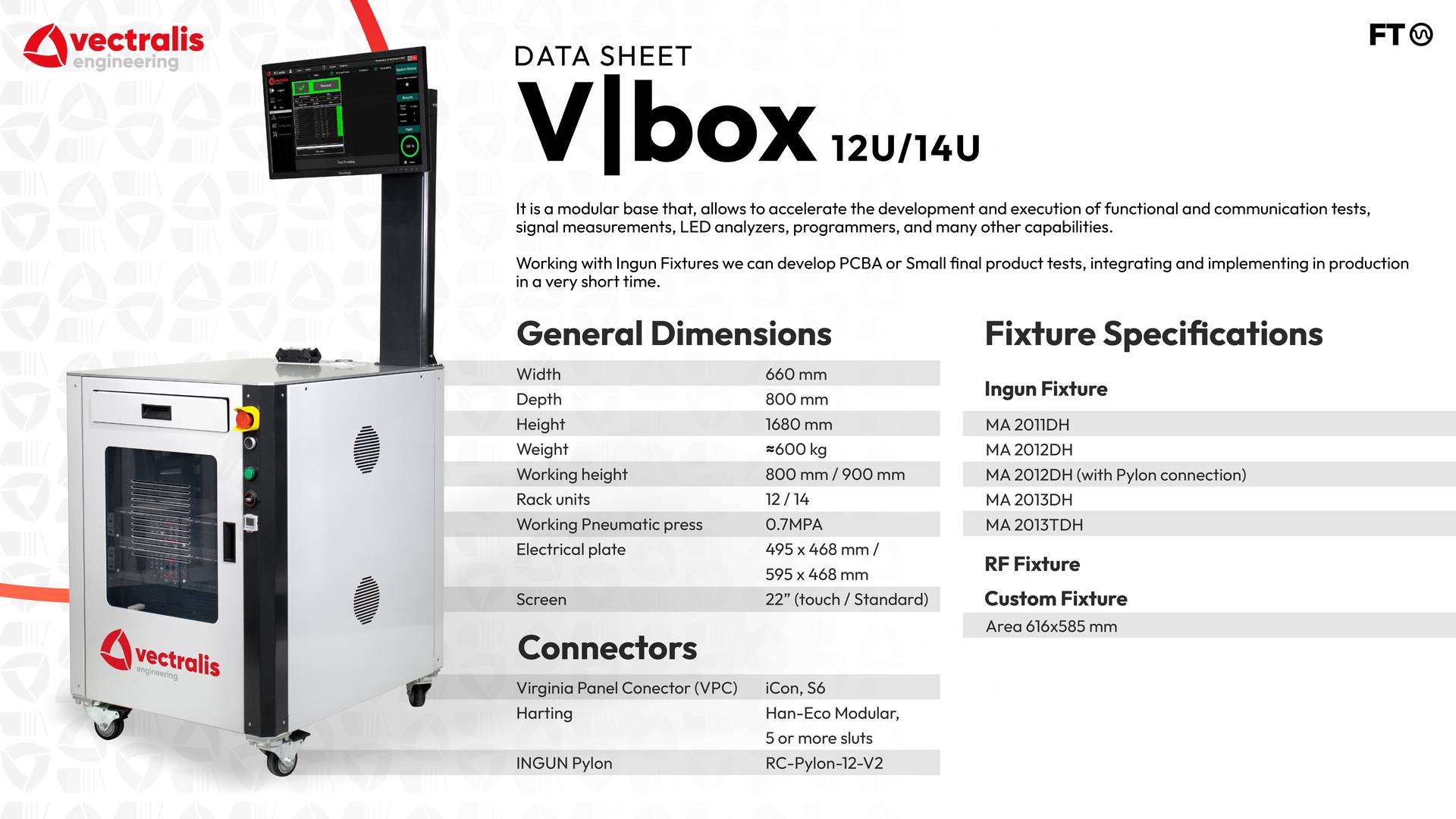

V|box 12-14

Enlarge

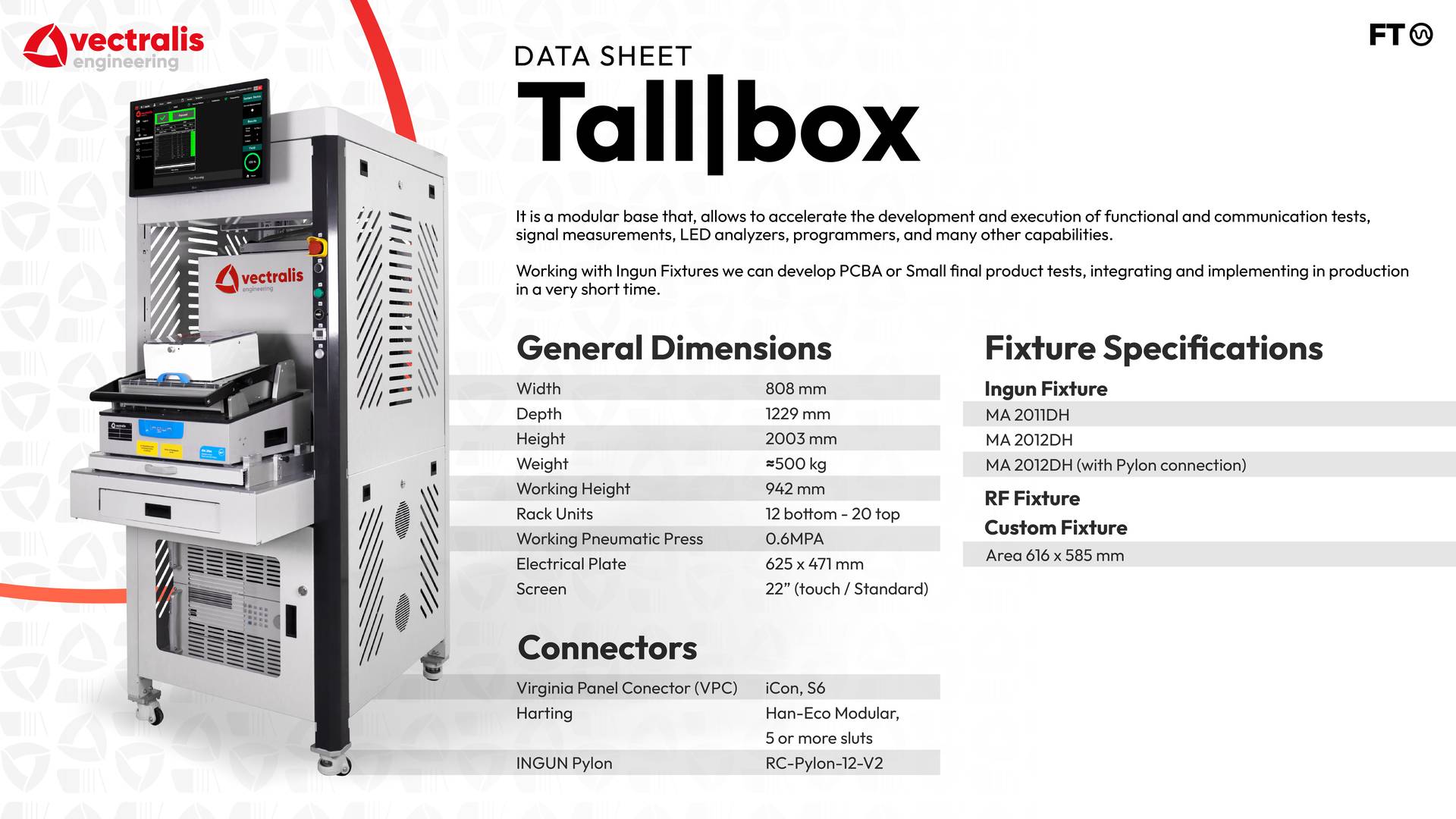

Tall|box

Enlarge

Galleries

V|box in action.

Watch the V|box run

The platform working in real production settings.

Watch the videos

V|box projects

Stations built on the V|box base for different products.

Browse the projects

Would a V|box fit your test challenges?

Tell us about your test process. We’ll help determine whether a standard platform fits your needs or if a custom test station is the better approach.
